A RadioPropagation layer is a collection of individually positioned transmitter-receiver units charing some basic charcteristics - such as a calculation model for propagation computations. Individual coverage charts may contribute to a combined coverage chart for the layer as a whole. Interconnectivity between member units may be calculated and reported according to the each unit's role in such a constellation. More...

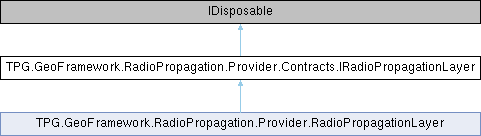

Inheritance diagram for TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer:

Public Member Functions
void	ResetCoverage ()
	Abandons the coverage diagram.

void	InsertCombinedItem (TagCombinedCoverageItem tcci)
	Inserts a single unit coverage matrix into the combined coverage diagram. Internal use.

void	SetUnitPropagationVisible (ITransmitterReceiver u, bool bVisible)
	Sets single unit coverage result to participate or not in the combined coverage diagram.

void	SetBoost (bool bBoost)
	Update boost values on on all coverage results, if applicable. Internal use.

void	AddAntennaEffects (ITransmitterReceiver u, CoverageMatrix pAcc)
	Update antenna effects for a single unit. Internal use only.

void	AddUnit (ITransmitterReceiver u)
	Adds a unit to the layer.

void	RemoveUnit (ITransmitterReceiver u)
	Removes a unit from the layer.

double	GetValue (GeoPos position)
	Get combined coverage value at a given position. The value unit (such as dBm or meters) depends on the model employed

IRasterLayerData	CreateMapLayer ()
	Creates a raster layer for coverage chart visualization. Internal use.

void	UpdateNetworkResult ()
	Update connectivity results. Internal use.

void	SetPendingNetworkNode (INetworkUnit u)
	Set all connectivity for a unit to be recomputed. Internal use.

ConnectivityMatrixElement	GetConnection (INetworkUnit tx, INetworkUnit rx)
	Get directional connectivity.

ITransmitterReceiver	GetUnitFromId (Guid id)
	Lookup unit corresponding to given id.

void	SetDefaultConnectivityMask (bool bOn)
	Sets default connectivitymask. This default mask will initially apply to any new unit subsequently added.

bool	GetConnectivityMask (INetworkUnit u, INetworkUnit v)
	Gets directional connectivitymask between unit u and unit v.

void	SetConnectivityMask (ITransmitterReceiver u, ITransmitterReceiver v, bool bOn, bool bBothDirections=true)
	Hide connectivity between two units.

bool	ExtractCoverageLevelCurves (double[] levels, double tolerance=0.0)
	Extract level curves from coverage data.

IEnumerable< GeoPos[]>	GetLevelCurves (int levelIndex)
	Get all level curves corresponding to given level index.

void	ToStream (Stream ost)
	Save the layer, all units along with parameters and coverage matrices to stream.

bool	FromStream (Stream ist, IRadioPropagationProvider provider)
	Reload the layer, all units along with parameters and coverage matrices from stream.

bool	ExportCoverageChartToGeoTIFF (Stream ost)
	Exports current coverage chart to GeoTIFF, using current legend.

void	SetUavLayer (bool b)
	Set layer as Uav layer.

Properties
bool	Visible `[get, set]`
	Controls visibility of the layer.

double	Refraction `[get, set]`
	Earth refraction factor (=4/3)

int	NumberOfKnifeEdges `[get, set]`
	Max number of diffraction knife edges in VHFUHF model.

double	Frequency `[get, set]`
	Carrier frequency in MHz. This frequency applies to all contained TransmitterReceiver units unless individually specified.

double	RxHeight `[get, set]`
	Get or set virtual receiver height.

int	Polarization `[get, set]`
	Wave polarization.

string	Id `[get]`
	Get layer id.

string	Name `[get, set]`
	Get or set layer name.

double	Resolution `[get, set]`
	Get or set resolution for coverage calculation results.

double	RxGain `[get, set]`
	Get or set receiver gain. This value applies commonly for coverage calculations.

RadioPropagationModelInfo	Model `[get, set]`
	Get or set propagation model.

CoverageLegendInfo	Legend `[get, set]`
	Get or set the legend info for coverage charts.

uint	ModelFlags `[get]`
	Gets interpretation flags from current model.

bool	CombineWorstCase `[get, set]`
	Gets or sets how coverage from separate transmitters contributes to combined coverage across a common area. If true, worst case will be applied. Default is false.

bool	Dirty `[get, set]`
	True if coverage diagram needs to be refreshed because of changed boost values, without recalculation.

bool	Working `[get]`
	True if any coverage calculation is in progress.

ObservableCollection< ITransmitterReceiver >	Units `[get]`
	Get the collection of radio units.

IRadioPropagationProvider	Provider `[get, set]`
	Set or get the RadioPropagationProvider owning the layer. The 'set' method is for internal use.

IConnectivityNetwork	Network `[get]`
	Gets the connectivity network of this layer.

double	MaxDistance `[get, set]`
	Get or set max distance for evaluating network connection. Connectivity calculations across distances beyond the given value will not be attempted.

ITransmitterReceiver	NetworkHub `[get, set]`
	Assign a single unit as network hub, or "master". To clear any such assignment, pass null.

bool	HasRouteAreasOnly `[get]`
	True if all units have a route coverage area.

bool	IsUavLayer `[get]`
	True, if layer for a single Uav.

UavLineWidthUnits	UavLineWidthUnit `[get, set]`
	Sets or gets the Uav coverage markup line width unit.

double	UavLineWidth `[get, set]`
	Sets or gets the Uav coverage markup line width.

Events
ConnectionsUpdatedHandler	OnConnectionsUpdated
	Event raised when network connectivity is updated.

EventHandler	VisibilityChanged
	Layer visibility changed.

UnitVisibilityChangedHandler	UnitVisibilityChanged
	Unit visibility changed.

Detailed Description

A RadioPropagation layer is a collection of individually positioned transmitter-receiver units charing some basic charcteristics - such as a calculation model for propagation computations. Individual coverage charts may contribute to a combined coverage chart for the layer as a whole. Interconnectivity between member units may be calculated and reported according to the each unit's role in such a constellation.

Member Function Documentation

◆ AddAntennaEffects()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.AddAntennaEffects	(	ITransmitterReceiver	u,
		CoverageMatrix	pAcc
	)

Update antenna effects for a single unit. Internal use only.

Parameters

u
pAcc

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ AddUnit()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.AddUnit ( ITransmitterReceiver u )

Adds a unit to the layer.

Parameters

u

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ CreateMapLayer()

IRasterLayerData TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.CreateMapLayer ( )

Creates a raster layer for coverage chart visualization. Internal use.

Returns

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ ExportCoverageChartToGeoTIFF()

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.ExportCoverageChartToGeoTIFF ( Stream ost )

Exports current coverage chart to GeoTIFF, using current legend.

Parameters

ost	Stream open for writing

Returns: true if successful

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ ExtractCoverageLevelCurves()

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.ExtractCoverageLevelCurves	(	double[]	levels,
		double	tolerance = `0.0`
	)

Extract level curves from coverage data.

Parameters

levels	Array of level values
tolerance	Tolerance for curve tying. If = 0 or less, autogenerated from data

Returns

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ FromStream()

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.FromStream	(	Stream	ist,
		IRadioPropagationProvider	provider
	)

Reload the layer, all units along with parameters and coverage matrices from stream.

Parameters

ist	Stream open for reading
provider	Model provider

Returns: true if successful

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ GetConnection()

ConnectivityMatrixElement TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.GetConnection	(	INetworkUnit	tx,
		INetworkUnit	rx
	)

Get directional connectivity.

Parameters

tx	Transmitter
rx	Receiver

Returns: The connectivity matrix element for the given tx and rx

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ GetConnectivityMask()

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.GetConnectivityMask	(	INetworkUnit	u,
		INetworkUnit	v
	)

Gets directional connectivitymask between unit u and unit v.

Parameters

u	tx
v	rx

Returns

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ GetLevelCurves()

IEnumerable< GeoPos[]> TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.GetLevelCurves ( int levelIndex )

Get all level curves corresponding to given level index.

Parameters

levelIndex Index in array of level values previously supplied as parameter to ExtractCoverageLevelCurves()

Returns

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ GetUnitFromId()

ITransmitterReceiver TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.GetUnitFromId ( Guid id )

Lookup unit corresponding to given id.

Parameters

id unit Id

Returns

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ GetValue()

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.GetValue ( GeoPos position )

Get combined coverage value at a given position. The value unit (such as dBm or meters) depends on the model employed

Parameters

position Position to get value at.

Returns: Combined coverage value or NaN if value could not be found for the given position.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ InsertCombinedItem()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.InsertCombinedItem ( TagCombinedCoverageItem tcci )

Inserts a single unit coverage matrix into the combined coverage diagram. Internal use.

Parameters

tcci

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ RemoveUnit()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.RemoveUnit ( ITransmitterReceiver u )

Removes a unit from the layer.

Parameters

u

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ ResetCoverage()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.ResetCoverage ( )

Abandons the coverage diagram.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ SetBoost()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.SetBoost ( bool bBoost )

Update boost values on on all coverage results, if applicable. Internal use.

Parameters

bBoost

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ SetConnectivityMask()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.SetConnectivityMask	(	ITransmitterReceiver	u,
		ITransmitterReceiver	v,
		bool	bOn,
		bool	bBothDirections = `true`
	)

Hide connectivity between two units.

Parameters

u	tx
v	rx
bOn	If true, set mask. If false, clear mask
bBothDirections	If true, mask the opposite connectivity v->u likewise

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ SetDefaultConnectivityMask()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.SetDefaultConnectivityMask ( bool bOn )

Sets default connectivitymask. This default mask will initially apply to any new unit subsequently added.

Parameters

bOn

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ SetPendingNetworkNode()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.SetPendingNetworkNode ( INetworkUnit u )

Set all connectivity for a unit to be recomputed. Internal use.

Parameters

u

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ SetUavLayer()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.SetUavLayer ( bool b )

Set layer as Uav layer.

Parameters

b

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ SetUnitPropagationVisible()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.SetUnitPropagationVisible	(	ITransmitterReceiver	u,
		bool	bVisible
	)

Sets single unit coverage result to participate or not in the combined coverage diagram.

Parameters

u
bVisible

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ ToStream()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.ToStream ( Stream ost )

Save the layer, all units along with parameters and coverage matrices to stream.

Parameters

ost	Stream open for writing

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ UpdateNetworkResult()

void TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.UpdateNetworkResult ( )

Update connectivity results. Internal use.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

Property Documentation

◆ CombineWorstCase

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.CombineWorstCase

getset

Gets or sets how coverage from separate transmitters contributes to combined coverage across a common area. If true, worst case will be applied. Default is false.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Dirty

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Dirty

getset

True if coverage diagram needs to be refreshed because of changed boost values, without recalculation.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Frequency

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Frequency

getset

Carrier frequency in MHz. This frequency applies to all contained TransmitterReceiver units unless individually specified.

<remark>Value in MHz. Preferably in the VHF (appr 30MHz - 300MHz) or UHF ranges (appr 300MHz-3000MHz)</remark> <remark>Applies to models VHF/UHF (ITU529), VHFUHF, RadixMKE.</remark>

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ HasRouteAreasOnly

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.HasRouteAreasOnly

get

True if all units have a route coverage area.

Returns

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Id

string TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Id

get

Get layer id.

Unique layer ID.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ IsUavLayer

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.IsUavLayer

get

True, if layer for a single Uav.

Returns

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Legend

CoverageLegendInfo TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Legend

getset

Get or set the legend info for coverage charts.

<remark>The legend must be suitable to the active radio propagation model</remark>

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ MaxDistance

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.MaxDistance

getset

Get or set max distance for evaluating network connection. Connectivity calculations across distances beyond the given value will not be attempted.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Model

RadioPropagationModelInfo TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Model

getset

Get or set propagation model.

Propagation model info - model name along with associated parameters.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ ModelFlags

uint TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.ModelFlags

get

Gets interpretation flags from current model.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Name

string TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Name

getset

Get or set layer name.

Propagation layer name.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Network

IConnectivityNetwork TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Network

get

Gets the connectivity network of this layer.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ NetworkHub

ITransmitterReceiver TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.NetworkHub

getset

Assign a single unit as network hub, or "master". To clear any such assignment, pass null.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ NumberOfKnifeEdges

int TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.NumberOfKnifeEdges

getset

Max number of diffraction knife edges in VHFUHF model.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Polarization

int TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Polarization

getset

Wave polarization.

Applies to models VHF/UHF (ITU529), VHFUHF, RadixMKE.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Provider

IRadioPropagationProvider TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Provider

getset

Set or get the RadioPropagationProvider owning the layer. The 'set' method is for internal use.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Refraction

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Refraction

getset

Earth refraction factor (=4/3)

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Resolution

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Resolution

getset

Get or set resolution for coverage calculation results.

Resolution (meter)

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ RxGain

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.RxGain

getset

Get or set receiver gain. This value applies commonly for coverage calculations.

Receiver gain (dBm).

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ RxHeight

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.RxHeight

getset

Get or set virtual receiver height.

Receiver height - antenna height (meter).

<remark>This is the rx antenna height which will be commonly applied to area coverage- and visibility calculations throughout the layer</remark> <remark>These calculations are thus independent of the individual rx antenna heights set on receivers separately</remark>

Applies to models VHF/UHF (ITU529), VHFUHF, RadixMKE

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ UavLineWidth

double TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.UavLineWidth

getset

Sets or gets the Uav coverage markup line width.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ UavLineWidthUnit

UavLineWidthUnits TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.UavLineWidthUnit

getset

Sets or gets the Uav coverage markup line width unit.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Units

ObservableCollection<ITransmitterReceiver> TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Units

get

Get the collection of radio units.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Visible

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Visible

getset

Controls visibility of the layer.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

◆ Working

bool TPG.GeoFramework.RadioPropagation.Provider.Contracts.IRadioPropagationLayer.Working

get

True if any coverage calculation is in progress.

Implemented in TPG.GeoFramework.RadioPropagation.Provider.RadioPropagationLayer.

The documentation for this interface was generated from the following file:

Src/Layers/RadioPropagation/TPG.GeoFramework.RadioPropagation.Provider.Contracts/IRadioPropagationLayer.cs

Public Member Functions

Properties

Events

Detailed Description

Member Function Documentation

◆ AddAntennaEffects()

◆ AddUnit()

◆ CreateMapLayer()

◆ ExportCoverageChartToGeoTIFF()

◆ ExtractCoverageLevelCurves()

◆ FromStream()

◆ GetConnection()

◆ GetConnectivityMask()

◆ GetLevelCurves()

◆ GetUnitFromId()

◆ GetValue()

◆ InsertCombinedItem()

◆ RemoveUnit()

◆ ResetCoverage()

◆ SetBoost()

◆ SetConnectivityMask()

◆ SetDefaultConnectivityMask()

◆ SetPendingNetworkNode()

◆ SetUavLayer()

◆ SetUnitPropagationVisible()

◆ ToStream()

◆ UpdateNetworkResult()

Property Documentation

◆ CombineWorstCase

◆ Dirty

◆ Frequency

◆ HasRouteAreasOnly

◆ Id

◆ IsUavLayer

◆ Legend

◆ MaxDistance

◆ Model

◆ ModelFlags

◆ Name

◆ Network

◆ NetworkHub

◆ NumberOfKnifeEdges

◆ Polarization

◆ Provider

◆ Refraction

◆ Resolution

◆ RxGain

◆ RxHeight

◆ UavLineWidth

◆ UavLineWidthUnit

◆ Units

◆ Visible

◆ Working
