#include <StkBillboardRenderItem.h>

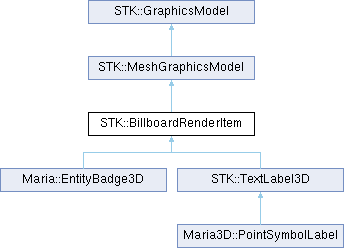

Inheritance diagram for STK::BillboardRenderItem:

Public Member Functions
	BillboardRenderItem (const std::shared_ptr< STK::GraphicsRender2D > &gfx_render, const STK::Viewport &vp, const std::string &name)

void	setShaderName (const std::string &shader_name)

const std::string &	getShaderName () const

void	setScale (float scale)

float	getScale () const

void	setRenderer (const std::shared_ptr< STK::GraphicsRender2D > &gfx_render)

const std::shared_ptr< STK::GraphicsRender2D > &	getRenderer () const

void	setViewport (const STK::Viewport &vp)

const STK::Viewport &	getViewport () const

void	setDepthTest (bool depth_test)

bool	getDepthTest () const

void	redraw (const STK::Camera &cam, const STK::Viewport &vp, int render_mask, const std::vector< std::shared_ptr< STK::Uniform > > *uniforms) override

void	calcBoundingSphere (STK::Vector3f &center, double &radius) override

void	calcBoundingBox (STK::Vector3f &min, STK::Vector3f &max) override

Public Member Functions inherited from STK::MeshGraphicsModel
	MeshGraphicsModel (std::shared_ptr< ShaderProgramManager > prg_mgr, const std::string &name="")

void	addMeshRender (std::shared_ptr< MeshRender > mesh_render)

unsigned int	addMeshGroup (std::shared_ptr< MaterialMeshGroup > mesh_grp, const unsigned int layer=0)

std::shared_ptr< MaterialMeshGroup >	getMeshGroup (const unsigned int id)

void	setMeshGroup (const unsigned int id, std::shared_ptr< MaterialMeshGroup > mesh_grp)

void	removeMeshGroup (const unsigned int id)

const std::map< unsigned int, std::shared_ptr< MaterialMeshGroup > > &	getMeshGroups () const

std::map< unsigned int, std::shared_ptr< MaterialMeshGroup > > &	getMeshGroups ()

std::shared_ptr< STK::Material >	findMaterial (const std::string &name) const

void	needsUpdate (const bool needs_update)

std::shared_ptr< const MeshNode >	getRoot () const

std::shared_ptr< MeshNode >	getRoot ()

void	setRoot (const std::shared_ptr< MeshNode > &node)

void	redraw (const STK::Camera &cam, const STK::Viewport &vp, int render_mask=STK::OpaqueMask, const std::vector< std::shared_ptr< STK::Uniform > > *uniforms=nullptr) override

void	calcBoundingSphere (STK::Vector3f &center, double &radius) override

void	drawShadowMap (const STK::Camera &cam, const STK::Viewport &vp, const Camera &shd_cam, const Viewport &shd_vp, STK::ShaderProgram shader, STK::ShaderProgram tex_shader) override

void	addAnimation (std::shared_ptr< AnimationController > anim)

const std::vector< std::shared_ptr< AnimationController > > &	getAnimations () const

int	findAnimations (const std::string &search, std::list< std::shared_ptr< AnimationController > > &anims)

std::shared_ptr< AnimationController >	findAnimation (const std::string &name)
	Find the animation with the exact name.

void	findMeshNodes (const std::string &search, std::vector< std::shared_ptr< STK::MeshNode > > &nodes) const

void	findMeshNodes (const std::regex &re, std::vector< std::shared_ptr< STK::MeshNode > > &nodes) const

std::shared_ptr< STK::MeshNode >	findMeshNode (const std::string &name) const

void	calcBoundingBox (STK::Vector3f &min, STK::Vector3f &max) override

std::shared_ptr< STK::ShaderProgramManager >	shaderProgramManager ()

std::shared_ptr< MeshGraphicsModel >	refCopy ()

void	redrawBackToFront (const Camera &cam, const STK::Viewport &, int render_mask, const std::vector< std::shared_ptr< Uniform > > *uniforms)

Public Member Functions inherited from STK::GraphicsModel
	GraphicsModel (const std::string &name="")

void	setName (const std::string &name)

const std::string &	getName () const

virtual void	filterChildren (const filter_fn &fn, std::vector< std::shared_ptr< GraphicsModel > > &matched)

void	setTransform (const STK::Matrix4x4f &transform)

const STK::Matrix4x4f &	getTransform () const

void	setEnvironmentMap (const std::shared_ptr< STK::CubeMap > &env_map)

std::shared_ptr< STK::CubeMap >	getEnvironmentMap ()

std::shared_ptr< const STK::CubeMap >	getEnvironmentMap () const

void	setWireframe (bool wireframe)

bool	getWireframe () const

void	setInvisible (bool invisible)

bool	getInvisible () const

void	setCastShadows (bool cast_shadows)

bool	getCastShadows () const

void	setDebugGraphics (bool debug_gfx)

bool	getDebugGraphics () const

virtual void	redraw (const STK::Camera &cam, const STK::Viewport &vp, int render_mask=STK::OpaqueMask, const std::vector< std::shared_ptr< STK::Uniform > > *uniforms=nullptr)=0

virtual void	drawShadowMap (const STK::Camera &cam, const STK::Viewport &vp, const STK::Camera &shd_cam, const STK::Viewport &shd_vp, STK::ShaderProgram shader, STK::ShaderProgram tex_shader)=0

virtual void	calcBoundingSphere (STK::Vector3f &center, double &radius)=0

virtual void	calcBoundingBox (STK::Vector3f &min, STK::Vector3f &max)=0

Protected Member Functions
virtual void	updateGeometry ()

bool	initGeometry ()

Protected Member Functions inherited from STK::MeshGraphicsModel
void	calcNodeBounds (const MeshNode &parent, const STK::Matrix4x4f &m, STK::Vector3f &min, STK::Vector3f &max)

void	drawHilitMeshes (const STK::Matrix4x4f &mesh_mvp, const STK::Matrix4x4f &pj, const std::vector< HilitMesh > &hilitMeshes)

void	update ()

void	updateIfNeeded ()

Protected Attributes
std::shared_ptr< FBOTexture >	fbo_tex_

std::shared_ptr< MaterialMeshGroup >	mesh_grp_

std::shared_ptr< STK::GraphicsRender2D >	gfx_render_

bool	dirty_ = true

std::string	shader_name_ = "BillboardFixedSizeTextureNoLighting"

float	scale_ = 1.0f

STK::Viewport	viewport_

bool	depth_test_ = true

Protected Attributes inherited from STK::MeshGraphicsModel
std::shared_ptr< MeshNode >	root_

std::map< unsigned int, std::shared_ptr< MaterialMeshGroup > >	material_meshes_

bool	needs_update_

std::shared_ptr< ShaderProgramManager >	prg_mgr_

std::vector< std::shared_ptr< AnimationController > >	animations_

Protected Attributes inherited from STK::GraphicsModel
std::string	name_

STK::Matrix4x4f	transform_

std::shared_ptr< STK::CubeMap >	env_map_

bool	wireframe_

bool	invisible_

bool	cast_shadows_

bool	debug_gfx_

Additional Inherited Members
Public Types inherited from STK::GraphicsModel
using	filter_fn = std::function< bool(const GraphicsModel &)>

Static Public Member Functions inherited from STK::MeshGraphicsModel
static void	getMeshModels (std::shared_ptr< STK::GraphicsModel > rootModel, std::vector< std::shared_ptr< STK::MeshGraphicsModel > > &mesh_models)

Protected Types inherited from STK::MeshGraphicsModel
using	visit_func = std::function< void(const std::shared_ptr< GraphicsModel > &)>

Static Protected Member Functions inherited from STK::MeshGraphicsModel
static void	visitTree (const std::shared_ptr< GraphicsModel > &root, visit_func func)

Detailed Description

BillboardRenderItem - 3D billboard of a 2D renderitem graphic.

Constructor & Destructor Documentation

◆ BillboardRenderItem()

BillboardRenderItem::BillboardRenderItem	(	const std::shared_ptr< STK::GraphicsRender2D > &	gfx_render,
		const STK::Viewport &	vp,
		const std::string &	name
	)

Create a 2D render item as a 2D billboard.

Parameters

gfx_render	2D Renderer with the relevant items added for creating offscreen texture.
vp	Specific view in the coordinate system of the 2D render to show in the billboard.
name	String ID for the scene graph node.

Member Function Documentation

◆ calcBoundingBox()

void BillboardRenderItem::calcBoundingBox	(	STK::Vector3f &	min,
		STK::Vector3f &	max
	)

overridevirtual

Implements STK::GraphicsModel.

◆ calcBoundingSphere()

void BillboardRenderItem::calcBoundingSphere	(	STK::Vector3f &	center,
		double &	radius
	)

overridevirtual

Implements STK::GraphicsModel.

◆ redraw()

void BillboardRenderItem::redraw	(	const STK::Camera &	cam,
		const STK::Viewport &	vp,
		int	render_mask,
		const std::vector< std::shared_ptr< STK::Uniform > > *	uniforms
	)

overridevirtual

Implements STK::GraphicsModel.

◆ setShaderName()

void STK::BillboardRenderItem::setShaderName ( const std::string & shader_name )

inline

Set text to be rendered. Multiline text is supported with newline characters '
' in the string.

The documentation for this class was generated from the following files:

Native/SilentToolkit/StkScene/StkBillboardRenderItem.h
Native/SilentToolkit/StkScene/StkBillboardRenderItem.cpp
