#include <StkMeshGraphicsModel.h>

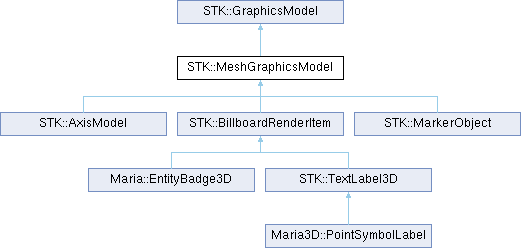

Inheritance diagram for STK::MeshGraphicsModel:

Classes
struct	HilitMesh

Public Member Functions
	MeshGraphicsModel (std::shared_ptr< ShaderProgramManager > prg_mgr, const std::string &name="")

void	addMeshRender (std::shared_ptr< MeshRender > mesh_render)

unsigned int	addMeshGroup (std::shared_ptr< MaterialMeshGroup > mesh_grp, const unsigned int layer=0)

std::shared_ptr< MaterialMeshGroup >	getMeshGroup (const unsigned int id)

void	setMeshGroup (const unsigned int id, std::shared_ptr< MaterialMeshGroup > mesh_grp)

void	removeMeshGroup (const unsigned int id)

const std::map< unsigned int, std::shared_ptr< MaterialMeshGroup > > &	getMeshGroups () const

std::map< unsigned int, std::shared_ptr< MaterialMeshGroup > > &	getMeshGroups ()

std::shared_ptr< STK::Material >	findMaterial (const std::string &name) const

void	needsUpdate (const bool needs_update)

std::shared_ptr< const MeshNode >	getRoot () const

std::shared_ptr< MeshNode >	getRoot ()

void	setRoot (const std::shared_ptr< MeshNode > &node)

void	redraw (const STK::Camera &cam, const STK::Viewport &vp, int render_mask=STK::OpaqueMask, const std::vector< std::shared_ptr< STK::Uniform > > *uniforms=nullptr) override

void	calcBoundingSphere (STK::Vector3f &center, double &radius) override

void	drawShadowMap (const STK::Camera &cam, const STK::Viewport &vp, const Camera &shd_cam, const Viewport &shd_vp, STK::ShaderProgram shader, STK::ShaderProgram tex_shader) override

void	addAnimation (std::shared_ptr< AnimationController > anim)

const std::vector< std::shared_ptr< AnimationController > > &	getAnimations () const

int	findAnimations (const std::string &search, std::list< std::shared_ptr< AnimationController > > &anims)

std::shared_ptr< AnimationController >	findAnimation (const std::string &name)
	Find the animation with the exact name.

void	findMeshNodes (const std::string &search, std::vector< std::shared_ptr< STK::MeshNode > > &nodes) const

void	findMeshNodes (const std::regex &re, std::vector< std::shared_ptr< STK::MeshNode > > &nodes) const

std::shared_ptr< STK::MeshNode >	findMeshNode (const std::string &name) const

void	calcBoundingBox (STK::Vector3f &min, STK::Vector3f &max) override

std::shared_ptr< STK::ShaderProgramManager >	shaderProgramManager ()

std::shared_ptr< MeshGraphicsModel >	refCopy ()

void	redrawBackToFront (const Camera &cam, const STK::Viewport &, int render_mask, const std::vector< std::shared_ptr< Uniform > > *uniforms)

Public Member Functions inherited from STK::GraphicsModel
	GraphicsModel (const std::string &name="")

void	setName (const std::string &name)

const std::string &	getName () const

virtual void	filterChildren (const filter_fn &fn, std::vector< std::shared_ptr< GraphicsModel > > &matched)

void	setTransform (const STK::Matrix4x4f &transform)

const STK::Matrix4x4f &	getTransform () const

void	setEnvironmentMap (const std::shared_ptr< STK::CubeMap > &env_map)

std::shared_ptr< STK::CubeMap >	getEnvironmentMap ()

std::shared_ptr< const STK::CubeMap >	getEnvironmentMap () const

void	setWireframe (bool wireframe)

bool	getWireframe () const

void	setInvisible (bool invisible)

bool	getInvisible () const

void	setCastShadows (bool cast_shadows)

bool	getCastShadows () const

void	setDebugGraphics (bool debug_gfx)

bool	getDebugGraphics () const

virtual void	redraw (const STK::Camera &cam, const STK::Viewport &vp, int render_mask=STK::OpaqueMask, const std::vector< std::shared_ptr< STK::Uniform > > *uniforms=nullptr)=0

virtual void	drawShadowMap (const STK::Camera &cam, const STK::Viewport &vp, const STK::Camera &shd_cam, const STK::Viewport &shd_vp, STK::ShaderProgram shader, STK::ShaderProgram tex_shader)=0

virtual void	calcBoundingSphere (STK::Vector3f &center, double &radius)=0

virtual void	calcBoundingBox (STK::Vector3f &min, STK::Vector3f &max)=0

Static Public Member Functions
static void	getMeshModels (std::shared_ptr< STK::GraphicsModel > rootModel, std::vector< std::shared_ptr< STK::MeshGraphicsModel > > &mesh_models)

Protected Types
using	visit_func = std::function< void(const std::shared_ptr< GraphicsModel > &)>

Protected Member Functions
void	calcNodeBounds (const MeshNode &parent, const STK::Matrix4x4f &m, STK::Vector3f &min, STK::Vector3f &max)

void	drawHilitMeshes (const STK::Matrix4x4f &mesh_mvp, const STK::Matrix4x4f &pj, const std::vector< HilitMesh > &hilitMeshes)

void	update ()

void	updateIfNeeded ()

Static Protected Member Functions
static void	visitTree (const std::shared_ptr< GraphicsModel > &root, visit_func func)

Protected Attributes
std::shared_ptr< MeshNode >	root_

std::map< unsigned int, std::shared_ptr< MaterialMeshGroup > >	material_meshes_

bool	needs_update_

std::shared_ptr< ShaderProgramManager >	prg_mgr_

std::vector< std::shared_ptr< AnimationController > >	animations_

Protected Attributes inherited from STK::GraphicsModel
std::string	name_

STK::Matrix4x4f	transform_

std::shared_ptr< STK::CubeMap >	env_map_

bool	wireframe_

bool	invisible_

bool	cast_shadows_

bool	debug_gfx_

Additional Inherited Members
Public Types inherited from STK::GraphicsModel
using	filter_fn = std::function< bool(const GraphicsModel &)>

Detailed Description

MeshGraphicsModel - A graphics model consisting of one or more indexed meshes. The MeshGraphicsModel consists of a set of indexed primitive Meshes. The meshes are arranged in a tree of MeshNodes which have transformation matrices relative to the GraphicsModel transform. Each MeshNode may contain a number of Meshes as well as a number of child nodes. The same Mesh can be referenced by different MeshNodes, supporting instancing within a MeshGraphicsModel

For optimal rendering, the meshes are sorted by material into MaterialMeshGroups. Each such group references a single material and a set of Meshes. In addition, each material group must reference the vertex buffer used by the meshes in this group. All meshes in one group must use the same vertex buffer, and the same vertex buffer can be referenced by many MaterialMeshGroups.

See also: Mesh; MeshNode; VertexBuffer; MaterialMeshGroup

Member Function Documentation

◆ addMeshGroup()

unsigned int STK::MeshGraphicsModel::addMeshGroup	(	std::shared_ptr< MaterialMeshGroup >	mesh_grp,
		const unsigned int	layer = `0`
	)

inline

Add material mesh group. All meshes in the model are sorted by material by grouping meshes with equal materials into MaterialMeshGroups. These groups are organized in layers so that higher layers are rendered later than lower layers. For example transparent objects should be placed in higher layers for them to be rendered after the opaque objects.

Returns: ID for the material mesh group.

◆ calcBoundingBox()

void MeshGraphicsModel::calcBoundingBox	(	STK::Vector3f &	min,
		STK::Vector3f &	max
	)

overridevirtual

Implements STK::GraphicsModel.

◆ calcBoundingSphere()

void MeshGraphicsModel::calcBoundingSphere	(	STK::Vector3f &	center,
		double &	radius
	)

overridevirtual

Implements STK::GraphicsModel.

◆ drawShadowMap()

void MeshGraphicsModel::drawShadowMap	(	const STK::Camera &	cam,
		const STK::Viewport &	vp,
		const Camera &	shd_cam,
		const Viewport &	shd_vp,
		STK::ShaderProgram *	shader,
		STK::ShaderProgram *	tex_shader
	)

overridevirtual

Implements STK::GraphicsModel.

◆ findMeshNode()

std::shared_ptr< STK::MeshNode > STK::MeshGraphicsModel::findMeshNode ( const std::string & name ) const

inline

Find the first node matching the given name.

◆ findMeshNodes() [1/2]

void STK::MeshGraphicsModel::findMeshNodes	(	const std::regex &	re,
		std::vector< std::shared_ptr< STK::MeshNode > > &	nodes
	)		const

inline

Recursively find all mesh nodes with names matching the given regular expression.

◆ findMeshNodes() [2/2]

void STK::MeshGraphicsModel::findMeshNodes	(	const std::string &	search,
		std::vector< std::shared_ptr< STK::MeshNode > > &	nodes
	)		const

inline

Recursively find all mesh nodes with names matching the given search string exactly. If an empty string is given, all nodes are returned.

◆ redraw()

void MeshGraphicsModel::redraw	(	const STK::Camera &	cam,
		const STK::Viewport &	vp,
		int	render_mask = `STK::OpaqueMask`,
		const std::vector< std::shared_ptr< STK::Uniform > > *	uniforms = `nullptr`
	)

overridevirtual

Implements STK::GraphicsModel.

◆ refCopy()

std::shared_ptr< MeshGraphicsModel > MeshGraphicsModel::refCopy ( )

Referenced (semi-shallow) copy. This method will copy all the transform and animation hierarchy, as well as material groups, but all referencing the same meshes. and materials. The referenced copy can modify animations, node transforms and material groups without changing the original model, including replacing materials in the material group with new ones.

The documentation for this class was generated from the following files:

Native/SilentToolkit/StkScene/StkMeshGraphicsModel.h
Native/SilentToolkit/StkScene/StkMeshGraphicsModel.cpp
