TPG.GeoFramework.Contracts.Geo.Context.IGeoNavigator Interface Reference

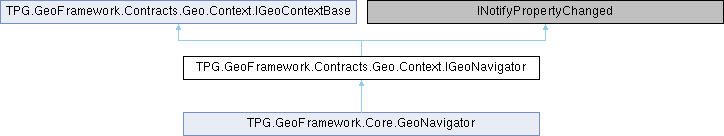

Inheritance diagram for TPG.GeoFramework.Contracts.Geo.Context.IGeoNavigator:

Public Member Functions
void	PushTransitionTimeFactor (double timeFactor)
double	PopTransitionTimeFactor ()
bool	SetViewportFromPositionList (List< GeoPos > positions, int pixelMargin=0, bool bKeepProjection=false, bool bKeepRotation=false)
void	SetWantedViewport (IViewport vp)
void	UpdateViewport (double dt=-1.0)
	Calculate current viewport. This should be done once per frame before rendering. This will calculate the viewport from either panning position or smoothly interpolated viewports.
Public Member Functions inherited from TPG.GeoFramework.Contracts.Geo.Context.IGeoContextBase
void	BeginTracking (Point pt)
void	UpdateTracking (Point pt)
void	EndTracking (Point pt)
void	Pan (Vector pan)
void	Pan (Vector pan, double panStep)
void	PanLeft (object obj=null)
void	PanRight (object obj=null)
void	PanUp (object obj=null)
void	PanDown (object obj=null)
void	ZoomAt (Point pt, double zoomFactor)
void	ZoomTo (GeoPos pos, double scale)
void	ZoomTo (List< GeoPos > positions, int margin=0)
	Zoom to a list of positions.

Properties
IGeoNavigatorSettings	Settings [get]
IGeoContext	GeoContext [get]
IViewport	LastWantedViewport [get]
ICommand	ZoomInCommand [get]
ICommand	ZoomOutCommand [get]
Object	ActiveTransitionController [get, set]
	null when no transition is active, otherwise it may be set to any external object responsible for controlling the transition
Properties inherited from TPG.GeoFramework.Contracts.Geo.Context.IGeoContextBase
bool	Tracking [get]
GeoContextTransitionState	TransitionState [get]
GeoPos	CenterPosition [get, set]
double	CenterScale [get, set]
int	PanStep [get, set]
double	MouseWheelStep [get, set]
ICommand	PanLeftCommand [get]
ICommand	PanRightCommand [get]
ICommand	PanUpCommand [get]
ICommand	PanDownCommand [get]

Member Function Documentation

UpdateViewport()

void TPG.GeoFramework.Contracts.Geo.Context.IGeoNavigator.UpdateViewport

(

double

dt = -1.0

)

Calculate current viewport. This should be done once per frame before rendering. This will calculate the viewport from either panning position or smoothly interpolated viewports.

Parameters

dt

Implemented in TPG.GeoFramework.Core.GeoNavigator.

Property Documentation

ActiveTransitionController

Object TPG.GeoFramework.Contracts.Geo.Context.IGeoNavigator.ActiveTransitionController

getset

null when no transition is active, otherwise it may be set to any external object responsible for controlling the transition

Implemented in TPG.GeoFramework.Core.GeoNavigator.

---

The documentation for this interface was generated from the following file:

• Src/Common/TPG.GeoFramework.Contracts/Geo/Context/IGeoNavigator.cs
