#include <StkRenderItem2D.h>

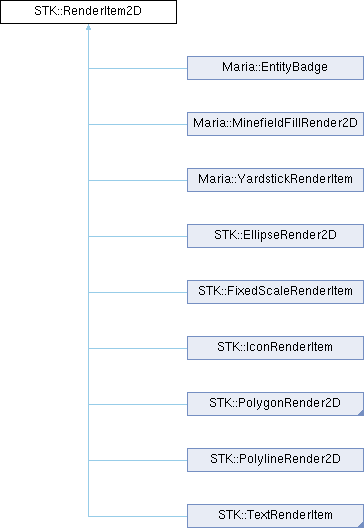

Inheritance diagram for STK::RenderItem2D:

Public Member Functions
virtual void	render (GraphicsRender2D &renderer, const STK::Matrix4x4f &pj, const STK::Matrix4x4f &vm, const STK::Viewport &vp)=0

virtual void	cleanupBuffers ()=0

virtual int	getBatchId () const =0

void	setDepth (float depth)

float	getDepth () const

void	setStencilValue (unsigned char stencil_value)
	Set value for stencil operations.

unsigned char	getStencilValue () const
	Get value for stencil operations.

void	setStencilMode (StencilMode mode)
	Stencil buffer operations.

StencilMode	getStencilMode () const
	Stencil buffer operations.

const STK::Matrix4x4f &	getTransform ()

void	setPosition (float x, float y)
	Set 2D position of the item. This method will invalidate the transform and cause it to be recalculated on the next frame.

void	setPosition (const STK::Vector2f &pos)
	Same as above.

void	setPositionX (float x)
	Set X position separately.

void	setPositionY (float y)
	Set Y position separately.

const STK::Vector2f &	getPosition () const

float	getPositionX () const

float	getPositionY () const

void	setScale (const STK::Vector2f &scale)

void	setScale (float scale)
	Set scale factor for the text item. This method will invalidate the transform and cause it to be recalculated on the next frame.

STK::Vector2f	getScale () const
	Returns current scale factor for the item.

void	setAngle (float angle)
	Set rotation angle for the item. Positive rotation direction is counter-clockwise. This method will invalidate the transform and cause it to be recalculated on the next frame.

float	getAngle () const

void	setTransform (const STK::Matrix4x4f &transform)
	Set transform directly. This method will set the transformation matrix for this item directly. This will override any values for setPosition(), setScale(), setDepth() and setAngle(). Also, any subsequent calls to these methods will again override this method. In short, either use setTransform() or setPosition/Scale/Angle/Depth.

void	setPreTransform (const STK::Matrix4x4f &transform)

void	setPostTransform (const STK::Matrix4x4f &transform)

std::optional< STK::Matrix4x4f >	getPreTransform () const

std::optional< STK::Matrix4x4f >	getPostTransform () const

void	setOpacity (float opacity)

float	getOpacity () const

virtual STK::Box2< float >	getViewBoundingBox (const STK::Matrix4x4f &mvp, const STK::Viewport &glVp, bool reverse_y=false)=0
	Get bounding box in viewport pixel coordinates.

Protected Member Functions
virtual void	updateTransform ()

void	setViewScale (float x, float y)

Protected Attributes
float	depth_ = 0

STK::Matrix4x4f	transform_

STK::Vector2f	pos_

float	angle_ = 0.0f

float	opacity_ = 1.0f

STK::Vector2f	scale_ { 1.0f, 1.0f }

bool	transform_dirty_ = false

std::optional< STK::Matrix4x4f >	pre_transform_

std::optional< STK::Matrix4x4f >	post_transform_

std::mutex	xfm_mutex_

unsigned char	stencil_value_ = 0

StencilMode	stencil_mode_ = StencilMode::NONE

float	view_scale_x_ = 1.0f

float	view_scale_y_ = 1.0f

Detailed Description

RenderItem2D - Base class for all 2D render items. This class is responsible for sorting render items most efficiently.

Items should be sorted primarily on depth so that higher depths are rendered before lower depths.

Next, the items are sorted on on the batch_id_ id which is typically a number assigned to each render item type so that all polygons on the same depth are rendered together, all lines on the same depth are rendered together, etc.

Member Function Documentation

◆ cleanupBuffers()

virtual void STK::RenderItem2D::cleanupBuffers ( )

pure virtual

Clean up OpenGL graphics objects This method should clean up all OpenGL related buffers and objects. This is normally called by GraphicsRender2D::cleanup()

Implemented in Maria::MinefieldFillRender2D, Maria::YardstickRenderItem, STK::EllipseRender2D, STK::FixedScaleRenderItem, STK::IconRenderItem, STK::PolygonRender2D, STK::PolylineRender2D, and STK::TextRenderItem.

◆ getBatchId()

virtual int STK::RenderItem2D::getBatchId ( ) const

pure virtual

Render batch id. This number indicates which item should be rendered together if the depths are equal.

Implemented in Maria::MinefieldFillRender2D, Maria::YardstickRenderItem, STK::EllipseRender2D, STK::FixedScaleRenderItem, STK::IconRenderItem, STK::PolygonRender2D, STK::PolylineRender2D, STK::TextRenderItem, and STK::TextRenderItemSDF.

◆ getScale()

STK::Vector2f STK::RenderItem2D::getScale ( ) const

inline

Returns current scale factor for the item.

Returns

◆ getStencilMode()

StencilMode STK::RenderItem2D::getStencilMode ( ) const

inline

Stencil buffer operations.

Get currently enabled stencil operating mode.

◆ getStencilValue()

unsigned char STK::RenderItem2D::getStencilValue ( ) const

inline

Get value for stencil operations.

Returns

◆ getTransform()

const STK::Matrix4x4f & STK::RenderItem2D::getTransform ( )

inline

Returns the current graphics transform for this item.

◆ getViewBoundingBox()

virtual STK::Box2< float > STK::RenderItem2D::getViewBoundingBox	(	const STK::Matrix4x4f &	mvp,
		const STK::Viewport &	glVp,
		bool	reverse_y = `false`
	)

pure virtual

Get bounding box in viewport pixel coordinates.

Parameters

mvp	Projection/Modelview matrix.
glVp	OpenGL viewport
reverse_y	If true, any pixel coordinate calculations are using positive y direction downwards. This applies for example to text and icon items which have separate pixel coordinate transforms.

Returns: Min/Max coordinates for the object in pixel coordinates.

Implemented in STK::FixedScaleRenderItem, Maria::MinefieldFillRender2D, Maria::YardstickRenderItem, STK::EllipseRender2D, STK::IconRenderItem, STK::PolygonRender2D, STK::PolylineRender2D, and STK::TextRenderItem.

◆ render()

virtual void STK::RenderItem2D::render	(	GraphicsRender2D &	renderer,
		const STK::Matrix4x4f &	pj,
		const STK::Matrix4x4f &	vm,
		const STK::Viewport &	vp
	)

pure virtual

Render item into the current frame. This method should render a single item into the GraphicsRender2D.

Implemented in STK::EllipseRender2D, STK::IconRenderItem, STK::PolygonRender2D, STK::PolylineRender2D, STK::TextRenderItem, STK::TextRenderItemSDF, Maria::CustomPolygonRenderer2D, Maria::CustomTextRenderItem, Maria::CustomTextRenderItemSDF, Maria::MinefieldFillRender2D, Maria::YardstickRenderItem, and STK::FixedScaleRenderItem.

◆ setAngle()

void STK::RenderItem2D::setAngle ( float angle )

inline

Set rotation angle for the item. Positive rotation direction is counter-clockwise. This method will invalidate the transform and cause it to be recalculated on the next frame.

Parameters

angle Rotation angle (in degrees).

◆ setDepth()

void STK::RenderItem2D::setDepth ( float depth )

inline

Render depth. Objects with lower depth are rendered in front of objects with higher depth. Range is arbitrary, both negative and positive values are allowed.

◆ setPosition() [1/2]

void STK::RenderItem2D::setPosition ( const STK::Vector2f & pos )

inline

Same as above.

Parameters

pos	New position (in pixels).

◆ setPosition() [2/2]

void STK::RenderItem2D::setPosition	(	float	x,
		float	y
	)

inline

Set 2D position of the item. This method will invalidate the transform and cause it to be recalculated on the next frame.

Parameters

x	X position (in pixels)
y	Y position (in pixels)

◆ setPositionX()

void STK::RenderItem2D::setPositionX ( float x )

inline

Set X position separately.

See also: setPosition

setPosition

Parameters

x	X position (in pixels)

◆ setPositionY()

void STK::RenderItem2D::setPositionY ( float y )

inline

Set Y position separately.

See also: setPosition

setPosition

Parameters

y	Y position (in pixels)

◆ setPostTransform()

void STK::RenderItem2D::setPostTransform ( const STK::Matrix4x4f & transform )

inline

Set post multiplicated transform Set an extra transformation which is added after the regular item transform.

◆ setPreTransform()

void STK::RenderItem2D::setPreTransform ( const STK::Matrix4x4f & transform )

inline

Set pre multiplicated transform Set an extra transformation which is added before the regular item transform. May be useful for example when moving a group of objects while retaining their positions relative to each other.

◆ setScale()

void STK::RenderItem2D::setScale ( float scale )

inline

Set scale factor for the text item. This method will invalidate the transform and cause it to be recalculated on the next frame.

Parameters

scale

◆ setStencilMode()

void STK::RenderItem2D::setStencilMode ( StencilMode mode )

inline

Stencil buffer operations.

This method can be used to enable stencil buffer operations on this render item. These operations are either writing the render item to the stencil buffer, or test for certain stencil buffer values while rendering. This can typically be used for masking graphics.

Parameters

mode	Stencil operation mode.

◆ setStencilValue()

void STK::RenderItem2D::setStencilValue ( unsigned char stencil_value )

inline

Set value for stencil operations.

Parameters

stencil_value 8-bit value to be written or tested for in stencil operations.

◆ setTransform()

void STK::RenderItem2D::setTransform ( const STK::Matrix4x4f & transform )

inline

Set transform directly. This method will set the transformation matrix for this item directly. This will override any values for setPosition(), setScale(), setDepth() and setAngle(). Also, any subsequent calls to these methods will again override this method. In short, either use setTransform() or setPosition/Scale/Angle/Depth.

Parameters

transform

The documentation for this class was generated from the following files:

Native/SilentToolkit/StkScene/StkRenderItem2D.h
Native/SilentToolkit/StkScene/StkRenderItem2D.cpp
