#include <MDrawObject.h>

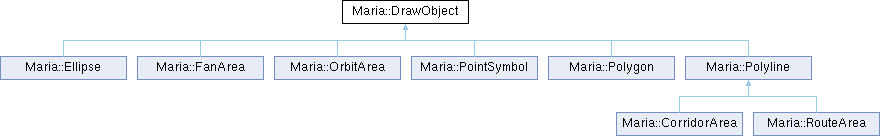

Inheritance diagram for Maria::DrawObject:

Public Member Functions
	DrawObject (const std::shared_ptr< Maria::DrawObjectData > &data)

Maria::ItemId	getId () const

const std::string	getDataTypeId () const

const std::shared_ptr< Maria::DrawObjectData >	getData () const

virtual void	setPosition (const BasicGeoTypes::GeoPos &pos)=0
	Set origin of the draw object at the given position.

virtual BasicGeoTypes::GeoPos	getPosition () const =0
	Get the origin of the draw object in geographical coordinates.

void	setLineColor (const STK::Color4i color)

const STK::Color4i	getLineColor () const

void	setLineDashStyle (Maria::DashStyle dashStyle)

Maria::DashStyle	getLineDashStyle () const

void	setLineWidth (int w)

int	getLineWidth () const

void	setFillColor (const STK::Color4i color)

const STK::Color4i	getFillColor () const

void	setFill (bool fill)

bool	getFill () const

void	setFillStyle (Maria::FillStyle fillStyle)

Maria::FillStyle	getFillStyle () const

void	setText (const std::string &text)
	Set text for draw object.

std::string	getText () const
	Get text for draw object.

void	setFieldValue (const std::string &key, const std::string &value)

std::string	getFieldValue (const std::string &key) const

Protected Attributes
std::shared_ptr< DrawObjectData >	_data

int32_t	_index = -1

Detailed Description

DrawObject - Base class for all draw objects. This is an instance of a graphics object with interface methods for accessing and modifying the underlying DrawObjectData.

See also: DrawObjectData

Member Function Documentation

◆ getPosition()

virtual BasicGeoTypes::GeoPos Maria::DrawObject::getPosition ( ) const

pure virtual

Get the origin of the draw object in geographical coordinates.

Implemented in Maria::Ellipse, Maria::FanArea, Maria::OrbitArea, Maria::PointSymbol, Maria::Polygon, and Maria::Polyline.

◆ getText()

std::string Maria::DrawObject::getText ( ) const

Get text for draw object.

Most draw objects support a generic text tag which usually is displayed at the center of the object. For point symbols, use the getLabel() mehtod instead.

Returns: Current text string.

◆ setPosition()

virtual void Maria::DrawObject::setPosition ( const BasicGeoTypes::GeoPos & pos )

pure virtual

Set origin of the draw object at the given position.

Parameters

pos	Geographical position of the draw object.

Implemented in Maria::Ellipse, Maria::FanArea, Maria::OrbitArea, Maria::PointSymbol, Maria::Polygon, and Maria::Polyline.

◆ setText()

void Maria::DrawObject::setText ( const std::string & text )

Set text for draw object.

Most draw objects support a generic text tag which usually is displayed at the center of the object. For point symbols, use the setLabel() mehtod instead.
