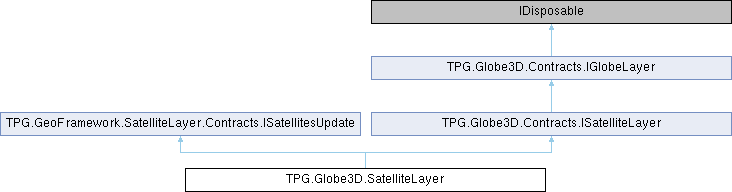

Inheritance diagram for TPG.Globe3D.SatelliteLayer:

Public Member Functions
	SatelliteLayer (IGlobe3DViewModel globe3DViewModel, ISatellitesStore satellitesStore, ILineOfSightStore lineOfSightStore, IDrawObjectDataFactory drawObjectFactory, string stylingXml)

void	SetStyleXml (string style)

void	UpdateSatellites ()
	Update all 3D graphics for all satellites. This is usually done automatically by the SatelllitesStore.

void	Dispose ()

void	BeforeSatellitesUpdate ()

void	AfterSatellitesUpdate ()

void	BeforeSatellitesUpdate ()

void	AfterSatellitesUpdate ()

void	UpdateSatellites ()
	Update all 3D graphics for all satellites. This is usually done automatically by the SatelllitesStore.

void	SetStyleXml (string style)

Properties
bool	RotateEarth `[get, set]`

double	AltitudeScale `[get, set]`
	This scale factor adjusts the altitudes of all satellites as a scaling factor. This can be useful for creating an "exploded" view when you have many satellites.

double	SymbolScale `[get, set]`
	Scale factor for all satellite icons.

double	IconSize `[get, set]`
	Base size (in pixels) for all satellite icons.

string	PointListId = "SatellitePoints3D" `[get]`
	ID of the underlying point symbol list. Can be used to identify items for example during hit testing.

double	LargeSymbolDistance `[get, set]`
	The distance at which the satellite icons are scaled up to actual size. Beyond this distance the icons are reduced to small points.

double	MaxDrawDistance `[get, set]`
	Maximum draw distance for icons.

double	ModelDistance `[get, set]`
	The distance at which we can show 3D models for the satellites (if defined).

bool	UseECICoordinates `[get, set]`
	Render satellite objects in an Earth Centered Inertial coordinate system. This will cause the earth to rotate according to the current time value.

int	FollowSatellite `[get, set]`
	Set the camera to follow a specific satellite. Set to 0 to disable.

int	CirclePointCount = 360 `[get, set]`

Properties inherited from TPG.Globe3D.Contracts.ISatelliteLayer
double	AltitudeScale `[get, set]`
	This scale factor adjusts the altitudes of all satellites as a scaling factor. This can be useful for creating an "exploded" view when you have many satellites.

double	SymbolScale `[get, set]`
	Scale factor for all satellite icons.

double	IconSize `[get, set]`
	Base size (in pixels) for all satellite icons.

string	PointListId `[get]`
	ID of the underlying point symbol list. Can be used to identify items for example during hit testing.

double	LargeSymbolDistance `[get, set]`
	The distance at which the satellite icons are scaled up to actual size. Beyond this distance the icons are reduced to small points.

double	MaxDrawDistance `[get, set]`
	Maximum draw distance for icons.

double	ModelDistance `[get, set]`
	The distance at which we can show 3D models for the satellites (if defined).

bool	UseECICoordinates `[get, set]`
	Render satellite objects in an Earth Centered Inertial coordinate system. This will cause the earth to rotate according to the current time value.

int	FollowSatellite `[get, set]`
	Set the camera to follow a specific satellite. Set to 0 to disable.

Member Function Documentation

◆ AfterSatellitesUpdate()

void TPG.Globe3D.SatelliteLayer.AfterSatellitesUpdate ( )

inline

Implements TPG.GeoFramework.SatelliteLayer.Contracts.ISatellitesUpdate.

◆ BeforeSatellitesUpdate()

void TPG.Globe3D.SatelliteLayer.BeforeSatellitesUpdate ( )

inline

Implements TPG.GeoFramework.SatelliteLayer.Contracts.ISatellitesUpdate.

◆ SetStyleXml()

void TPG.Globe3D.SatelliteLayer.SetStyleXml ( string style )

inline

Implements TPG.Globe3D.Contracts.ISatelliteLayer.

◆ UpdateSatellites()

void TPG.Globe3D.SatelliteLayer.UpdateSatellites ( )

inline

Update all 3D graphics for all satellites. This is usually done automatically by the SatelllitesStore.

Implements TPG.Globe3D.Contracts.ISatelliteLayer.

Property Documentation

◆ AltitudeScale

double TPG.Globe3D.SatelliteLayer.AltitudeScale

getset

This scale factor adjusts the altitudes of all satellites as a scaling factor. This can be useful for creating an "exploded" view when you have many satellites.

Implements TPG.Globe3D.Contracts.ISatelliteLayer.
